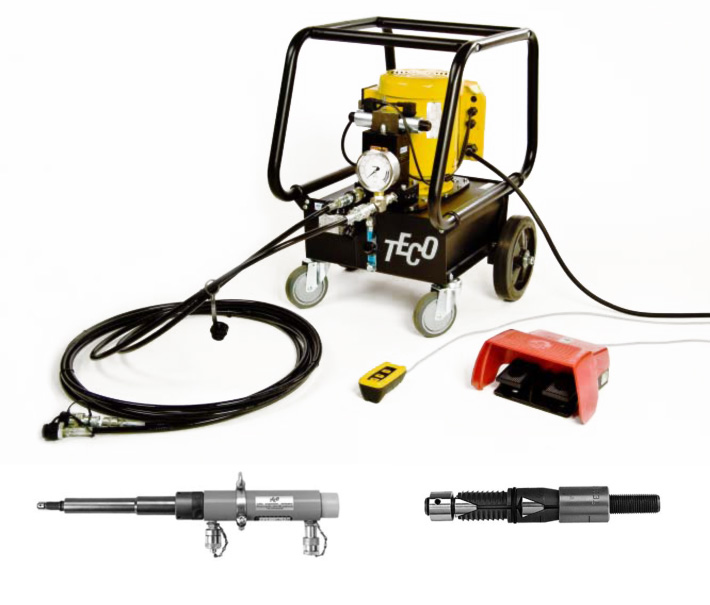

Hydraulic Tube Pulling System - 11 to pulling power
When re-tubing condensers and similar types of units containing non-ferrous tubes this specially developed hydraulic gripper tube puller removes tubes or tube stubs without damaging the tube sheet holes. This unit can pull up to 6 tubes per minute. The hydraulic ram has a single cycle stroke of 6 inches and a pulling power of 11 tons. The hydraulic pump operates at a pressure of 700 bar and has high-flow quick couplings.
Special Features: • Fast tube pulling action
• Easy to operate
• For tube ID from 12 – 35,95 mm
• For non-ferrous tubes
Spezifikationen: Hydraulic Pump: TZE-5420-SPR:
• Electro Hydraulic Pump
2.2 kW 220 Volt – 3 Ph 50/60 Hz
2.2 kW 400 Volt – 3 Ph 50/60 Hz
• Two-stage pump flow capacity
11.27 l/min at 0 – 50 bar
1.64 l/min at 50 – 700 bar
• Oil tank capacity 20 litres
• Remote control: hand or foot switch (optional)
• Frame size:
L 75 cm x W 64 cm x H 78 cm
Equipped with ball bearing type swivel wheels and brakes
• Glycerin-filled pressure gauge scale 0-700 bar
• Complete with 1 set of hydraulic hoses, each 6 meters long, with high-flow quick couplings.

Hydraulic Ram for Gripper Type Puller BRD-166-155-SP-11:
• Double -action ram
• Max. pulling power: 11 to at 700 bar operating pressure
• Stroke: 155 mm
• Cylinder OD: 80 mm
• Length: 630 mm
• Weight: 13 kg
• Complete with adapter for gripper ram puller and cylinder support
