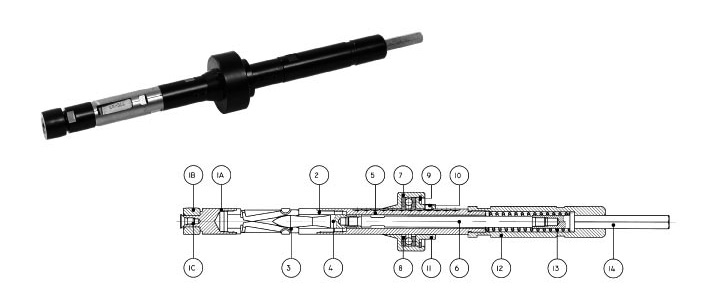

One-Revolution Tube Cutter, Type PTC

Tube cutter with 2 cutter bits for cutting tubes in condensers, heat exchangers and boilers from inside. Suitable for steel, high-grade steel, copper and brass tubes. Standard design for tube sheets up to 110 mm, extensible. Two-piece body and mandrel construction to allow for quick and easy tool bit replacement. Optimum tube cutting performance and tooling life are obtained when employed by the TECO Cutter Feed Assist. Cutter bits are now standard with tin coating, increasing the cutter bit life. TECO PTC tube cutters are sold with a complete set of pilots.
Features: • Suitable for tube sizes 5/8" – 1 1/8" OD (16 – 28 mm).
• Suitable for tube sheet thickness up to 277 mm
Typ „A“: Reach = 7 7/16" (188 mm)
Typ „C“: Reach = 10 15/16" (277 mm)
• Smooth cutting edge – minimized burr formation
• Quick changing of cutter bits
