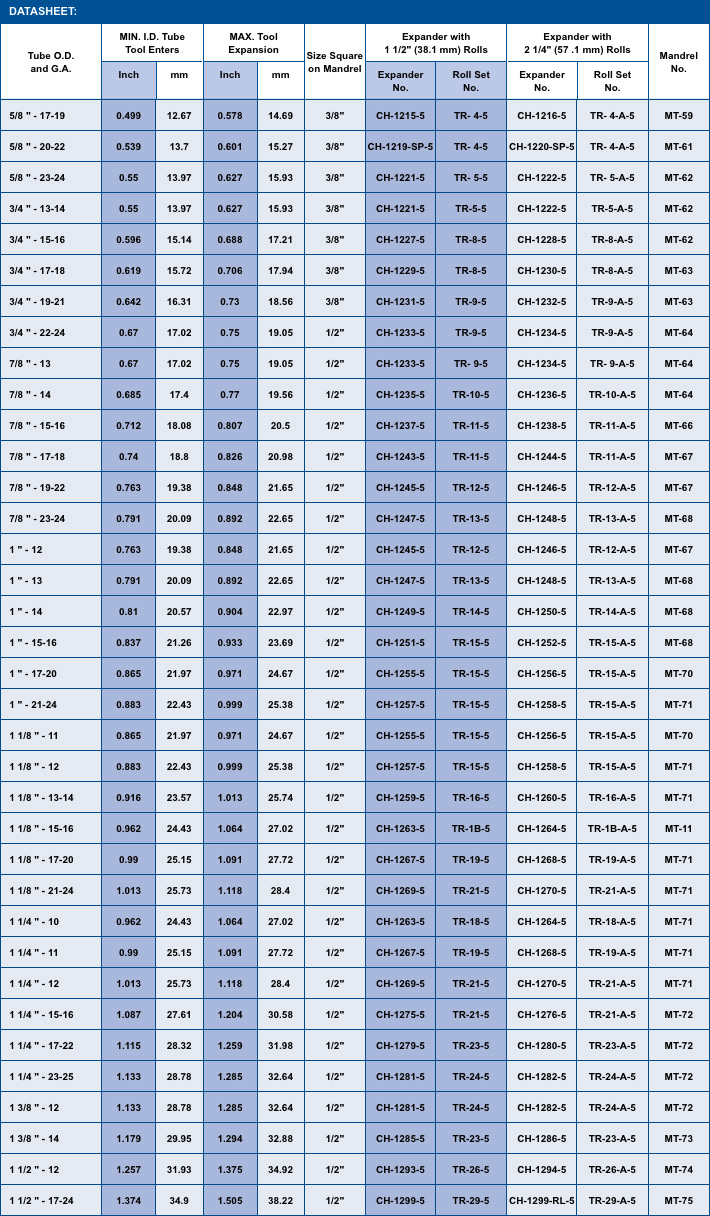

CH-1200 5-Roll Type Tube Expander
Tube range: 1/2" to 1 3/4" O.D.
(12.70 to 44.45 mm) O.D.

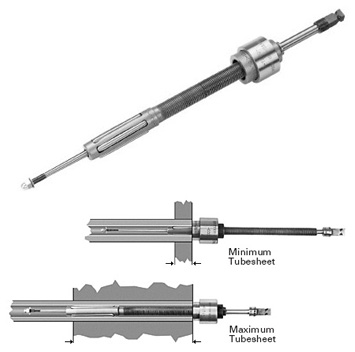

Expander with 1 1/2" (38.10 mm) long rolls suitable for tube sheet thicknesses from 3/4" to 5 7/8" (19.05 mm to 149.09 mm).
Expander with 2 1/4" (57.15 mm) long rolls suitable for tube sheet thicknesses from 1 1/2" to 6 1/2" (38.10 mm to 165.10 mm).
For TECO four and five roll expanders we recommend a thin wall thrust collar, especially for 19-24 Gauge wall.
|
