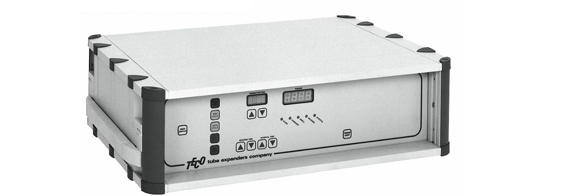

FEATURES · Latest computer technology. · Ultimate reliability. · Completely accurate. · Easy to set-up. · Semi or fully automatic operation. · Robust construction. · Single or three phase versions. Based upon the latest technology in electronic control, the Teco roll-a-motor control units use the same processor as found in personal computers. Ultimate reliability combined with speed and accuracy to give completely repeatable torque control of the motor. This latest technolgy enables very easy initial set up is therefore quick and easy with no special skills required by the operator. Securely housed in an aluminium casing this control unit is properly engineered to withstand the rigours of workshop and site environment alike. |
|||
 | |||
|

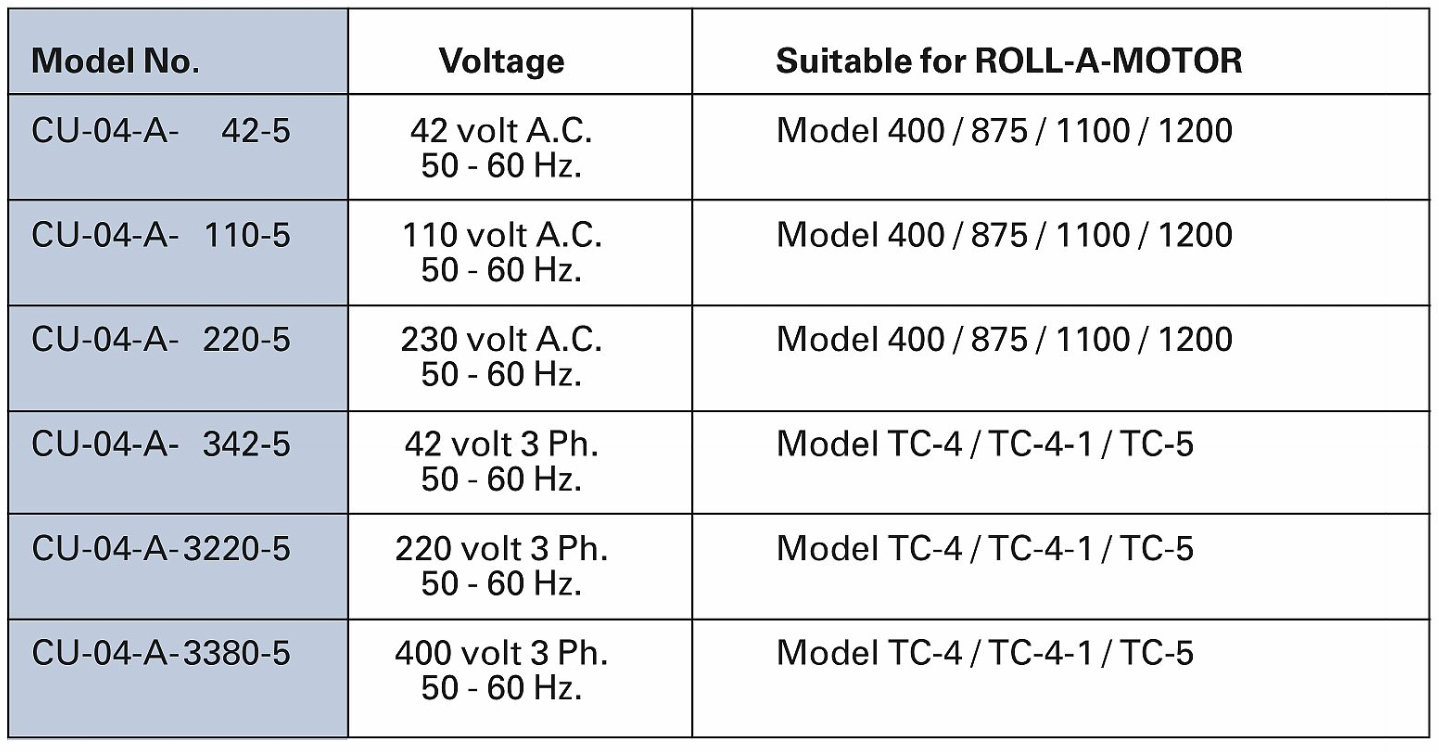

TECHNICAL SPECIFICATION Voltage: 110 or 230 : 1 phase : 50/60 Hz 220 or 400 : 3 phase : 50/60 Hz Power output: 2200 watts for 1 phase 3000 watts for 3 phase Dimensions: L 56 cm x W 36 cm x H 18 cm L 22” x W 14 11/64” x H 7 5/64” Weight: 15 kg Optional: Printer Transformer to 42 volts |
STANDARD FITTINGS · Remote control (24 volts). Digital read-out for programming. Digital read-out for torque. Reverse time setting 0 to 60 seconds. Interval time setting 0 to 60 seconds. Automatic phase corrector for 3 phase models. Flat panel, easy clean push buttons. Carrying handle. · RS 232 connector for interface with PC for read-out. |
||

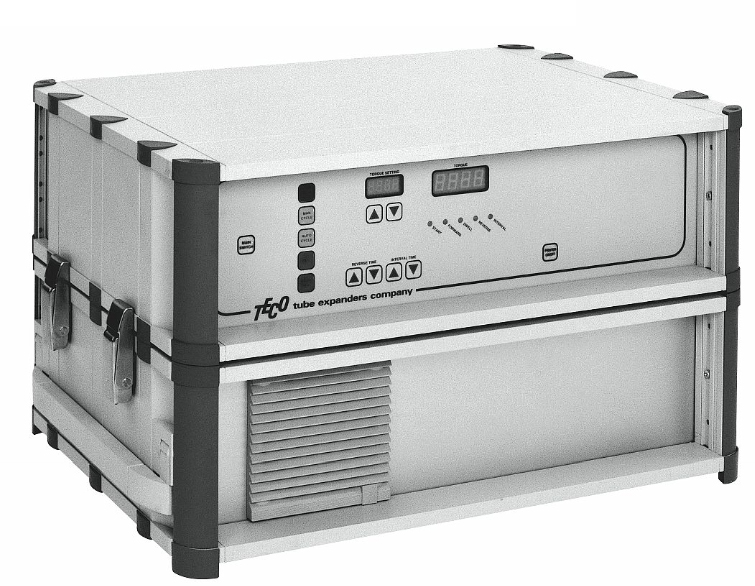

ROLL-A-MOTOR CONTROL UNIT WITH TRANSFORMER
| |||
